CNC Machining of a Steel Chain Hoist Drum for Power Utility

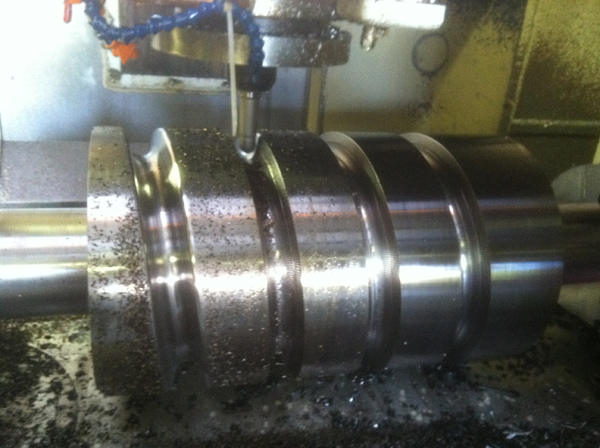

We were recently contracted by a utility customer to custom machine the chain hoist drum highlighted here. It was designed to hoist a floodgate for their Wishon dam facility, and exemplifies our ability to precision machine large components with quick turnaround times. Silicon Valley Precision was contracted to perform all of the required work, utilizing our cutting edge 4 axis Awea VP2012 machining center and rotary table to perform the CNC milling. The drum is composed of 4140 steel round stock with finished dimensions of 36″ in length and an outer diameter of 14″. This part was machined using the 4th axis to produce the helix and using the 3 axis motion to ball mill the cross section of the helical groove. This part was produced to a Tolerance of +-.003″

This drum hoist was ordered on a Friday and was delivered the following Monday a 3 day turnaround. Silicon Valley Precision is committed to high quality precision CNC machining, with rapid turnaround times. For more about this chain hoist drum machining project, or our other value added horizontal and vertical machining capabilities, please see the table below or contact us directly.

Highlights of this Chain Hoist Drum Project

Product DescriptionChain Hoist Drum Project
CNC Machining Capabilities Applied/ProcessesPrimary:
CNC Milling 4 axis

Secondary:
Deburring
Equipment Used to Manufacture PartAwea VP2012 and Rotary table
Overall Part DimensionsOD: 14"
Length: 36"
Tightest Tolerances+/- .005"
Material Used4140 Round Stock (steel)
Material FinishBall Mill Finish
In process testing/inspection performedDimensional Inspection
Visual Inspection
First Article Inspection Reports
Industry for UseUsed to hoist floodgate PGE on dam (Wishon dam)
Volume1
Delivery/Turnaround TimeDeliver 5-10 pieces/day for duration of project
Delivery LocationFOB our shop
Standards MetCustomer Specifications
2D CAD Drawing
Sketch
Product NameDrum Hoist
